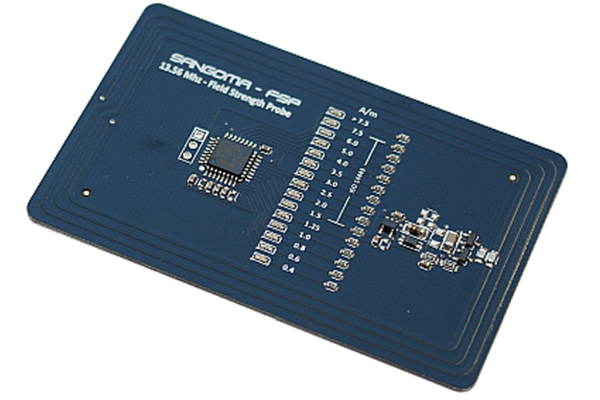

13.56 MHz Field Strength Probe
This portable probe is a simple to use tool to quickly check the field strength of installed or newly produced readers or connected antennas. The measured field strength is indicated by 15 differently colored LEDs.
Key Features
- Standard ID1 (86x54mm) sized 13.56 MHz field strength probe
- ISO/IEC14443, ISO/IEC15693, ISO/IEC18000-3 and ISO/IEC18092 compatible
- 15 LED three color bar graph indicator
- Fine resolution between 0.4 and 1.5 A/m
- Field powered – no battery
- Easy convenient use, fully portable
Typical Applications
- 13.56 MHz RFID reader-writer testing
- Product and installation testing
- System maintenance
Portfolio
NFC Antenna Extender Kit
You want to use your phone or tablet´s NFC antenna located in an inaccessible area for the user ? Simply use the U.FL connected antenna extender kit to re-locate your NFC reading area.
Key Features
- Allows to re-position the reading area of your NFC device
- ISO/IEC14443, ISO/IEC15693, ISO/IEC18000-3 and ISO/IEC18092 compatible
- 2x UF.L (IPEX) connected antennas 74 x 40 mm ( 2.91 x 1.57 inch)
- Detachable 250mm (9.85 inch) U.FL cable
- Other cable length can be used depending on the application needs.
Resonance Probe
You want to measure an NFC tag´s resonant frequency with your Vector Network Analyzer (VNA)?
Use this SMA connected probe to pick up the tags response.
Key Features
- Small outline 55 x 32 mm (2.16 x 0.63 inch)
- SMA (Standard) or U.FL (IPEX) connector option
- Test points on PCB
- Quick check NFC antenna or tag resonant frequency
