13.56 MHz NFC Antennas Overview
Customer and application specific antenna development! GMMC provides a customer and application specific antenna design service with a wide range of the following customization options: shape, material, physical dimensions, tuning network, antenna connector, shielding, coating, color.
Contact us to discuss your needs.
Downloads

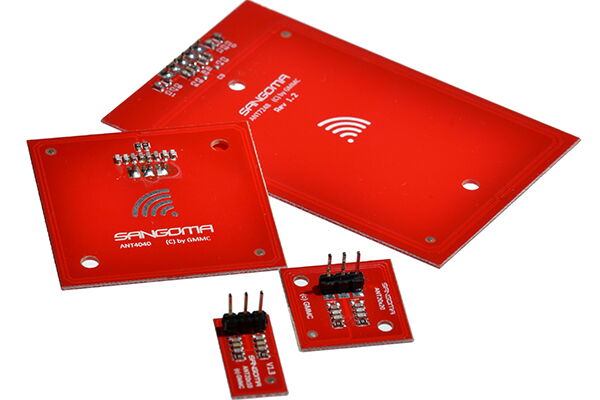

Rectangular Antennas (Portfolio Excerpt)
| Antenna Model | Physical Dimensions (mm) |
Physical Dimensions (inch) |
Antenna Connector |
Works with | LED Connector |
|---|---|---|---|---|---|
| SANGOMA ANT2010 |
20x10 | 0.79x0.39 | 3 wire 2.54mm (100 mil) |
SANGOMA-MSMA1 | |
| SANGOMA ANT2020 |
20x20 | 0.79x0.79 | 3 wire 2.54mm (100 mil) |
CLRC663plus-MBDB SANGOMA-MSMA GMPR533 |
|

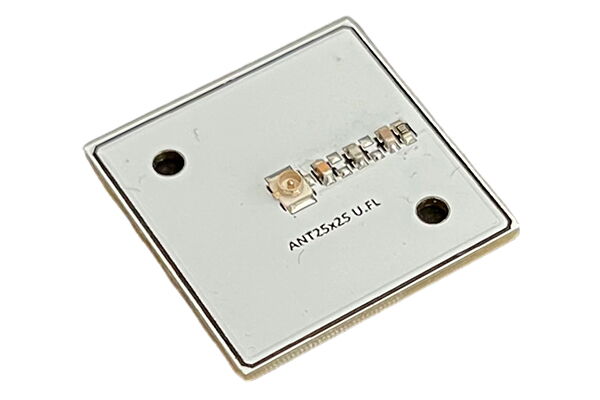

| SANGOMA ANT2525 |
25x25 | 1.0x1.0 | U.FL (IPEX) | ||
| SANGOMA ANT4040 |
40x40 | 1.57x1.57 | 3 wire 2.54mm (100 mil) |
CLRC663plus-MBDB SANGOMA-MSMA GMPR533 |
|

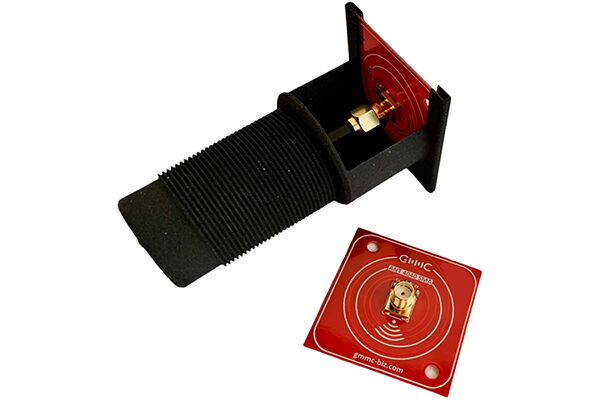

| SANGOMA ANT4040-SMA |
40x40 | 1.57x1.57 | SMA | CLRC663plus-MBDB SANGOMA-MSMA GMPR533 |
|
| SANGOMA ANT6020 |
60x20 | 2.36x0.79 | 3 wire 2.54mm (100 mil) |
CLRC663plus-MBDB SANGOMA-MSMA GMPR533 |
|
| SANGOMA ANT7248 |
72x48 | 2.83x1.89 | 3 wire 2.54mm (100 mil) |
CLRC663plus-MBDB SANGOMA-MSMA GMPR533 |
NOTE 1:
Four different antennas from the portfolio have been FCC and IC certified for the use with the Sangoma-MSMA module and can be attached via an unshielded twisted 3 wire cable with gold plated JR module Antenna connector: up to a maximum cable length of 200 cm (78.74 inches) in any desired mix.
Circular Antennas (Portfolio Excerpt)
| Antenna Model | Physical Dimensions (mm) |
Physical Dimensions (inch) |
Antenna Connector |
Works with | LED Connector |
|---|---|---|---|---|---|
| SANGOMA ANTD11 |
⌀11 | ⌀0.43 | 3 wire 2.54mm (100 mil) |
CLRC663plus-MBDB SANGOMA-MSMA GMPR533 |
|
| SANGOMA ANTD20 |
⌀20 | ⌀0.79 | 3 wire 2.54mm (100 mil) |
CLRC663plus-MBDB SANGOMA-MSMA GMPR533 |
|
| SANGOMA ANTD25 |
⌀25 | ⌀0.97 | 3 wire 2.54mm (100 mil) |
CLRC663plus-MBDB SANGOMA-MSMA GMPR533 |
|
| SANGOMA ANTD30-LED |
⌀30 | ⌀1.18 | UF.L or 3 wire 2.54mm (100 mil) |
JST XH 4 pole 2.5MM, power and LED control (Green, Red) |
|
| SANGOMA ANTD38-RGB |
⌀38 | ⌀1.50 | UF.L (IPEX), LED supply 100 mil |
JST XH 4 pole 2.5MM, power and LED control |
